Veiligheidszegels

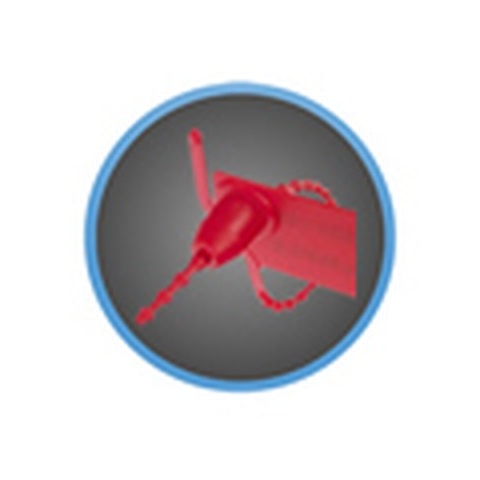

SP SEAL 01

Plastic Inserted Seals

• Notched tail pull-up plastic seal
• Hardened plastic insert in locking chamber for increased security
• Narrow tail, ideally suited to small apertures and eyelets
• With tear-line feature
• Optional length 150mm
• Raw material PP or PA (nylon)
• Supplied in mats of 10

Quantity per carton: 1000 pcs.
Weight: 2.2 kg (4.85 lbs)
Dimensions (Length x Width x Height): 230 x 300 x 300 mm (9.1” x 11.8 x 11.8”)

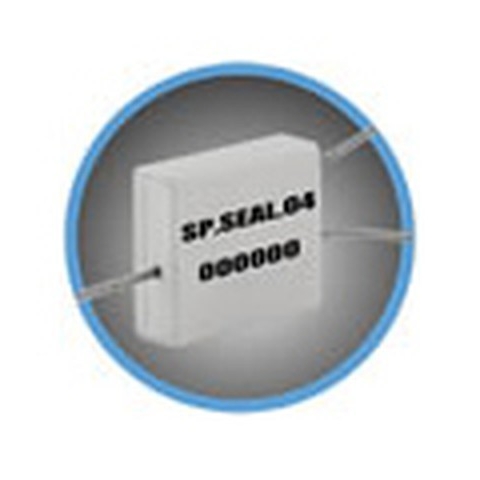

SP SEAL 04

Barrier Seals

• Heavy duty cable seal
• Highly durable polycarbonate body
• Laser marking as standard
• Wire diameter 1,6 mm
• Highly tamper evident
• Tensile strength up to 350 kg
• Available in various wire lengths
• Logo and barcode available
• Removal with side cutter

Quantity per carton: 500 pcs.
Weight: 9 kg (19.84 lbs)
Dimensions (Length x Width x Height): 330 x 254 x 120 mm

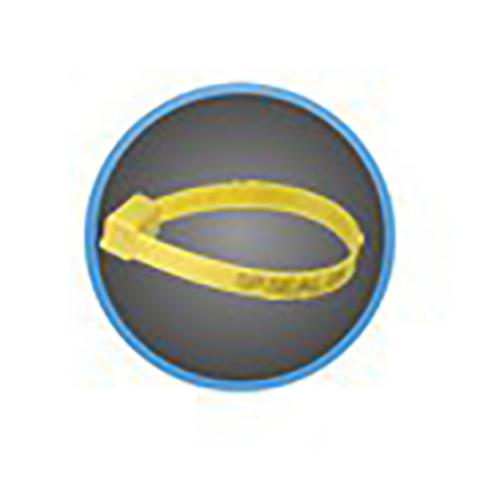

SP SEAL 05

Plastic Indicative Seals

• Fixed length seal in three optional lengths
• Tamper proof self attached cap that secures the locking chamber
• Easy application to all freight vehicles and hydrolic doors
• Optional length L1:145mm – L2:175mm – L3:207 mm
• Raw metarial PP
• Supplied in mats of 10

L1: Quantity per carton: 1000 pcs. Weight: 2,550 kg (14.3 lbs)
Dimensions (Length x Width x Height): 30X22X29 mm ( 13” x 16,9” x 11,4”)
L2: Quantity per carton: 1000 pcs. Weight: 2,875 kg (13.2 lbs)
Dimensions (Length x Width x Height): 30X22X29 mm ( 13” x 16,9” x 11,4”)
L3: Quantity per carton: 1000 pcs. Weight: 3,150 kg (13.2 lbs)
Dimensions (Length x Width x Height): 30X22X29 mm( 13” x 16,9” x 11,4”)

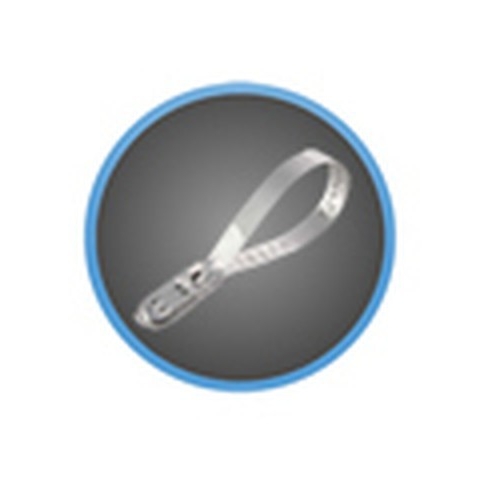

SP SEAL 05 METAL STRAP

Barrier Seals

• Recommended Applications: Trailers, Tankers, Rail freight, Containers, Refineries.
• Class Acceptance:
  • HM Revenue & Customs Sub-Group 3
  • EU Regulation 2454/93, Article 386, Annex46A
  • US In-Bond Security
• Material: Matt tinplated steel
• Available Operating Length: 10cm – 65cm (18cm standard)

Quantity per carton: 1000 pcs. Weight : 6,5 kg
Dimensions (Length x Width x Height): 330 x 254 x 120 mm

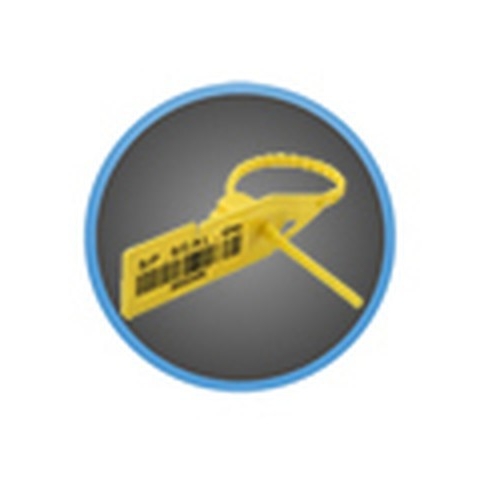

SP SEAL 06

Plastic Indicative Seals

• Large flag for improved number legibility
• Logo and barcode available
• Robust, versatile, adjustable length seal
• Double tooth, notched ribbon design, for improved grip around neck of bag
• Gripping prongs at base of tail to enhance grip
• Tear-line feature ensures easy removal by hand
• Operational length: 161 mm
• Raw material PP
• Supplied in mats of 5

Quantity per carton: 1000 pcs. Weight: 8.7 kg (19.2 lbs)
Dimensions (Length x Width x Height): 520 x 510 x 360 mm (20.4” x 20” x 14.1”)

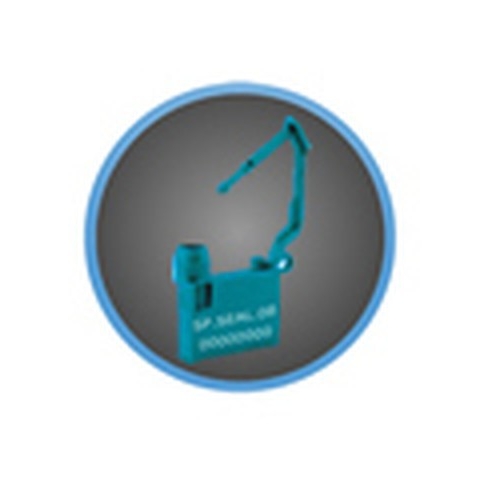

SP SEAL 08

Plastic Inserted Seals

• Locking insert from hard plastic
• Ideal design for the service carts and atm cassets
• Locking insert secured with hot forming
• Wide marking area
• Marking with thermal transfer or laser
• Raw material PP
• Supplied in mats of 5

Quantity per carton: 1000 pcs. Weight: 2.2 kg (4.85 lbs)
Dimensions (Length x Width x Height): 230 x 300 x 300 mm (9.1” x 11.8 x 11.8”)

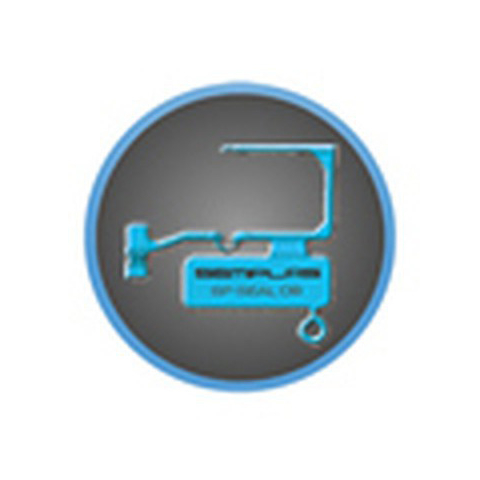

SP SEAL 09

Plastic Indicative Seals

• Ideal design for the service carts and atm cassets
• Wide marking area
• Marking with thermal transfer or laser
• Raw material PP
• Supplied in mats of 5

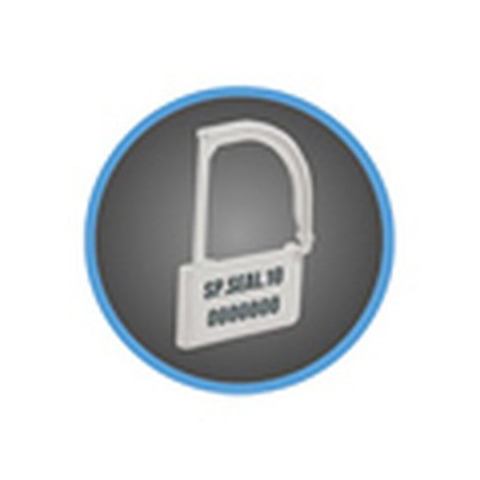

SP SEAL 10

Plastic Indicative Seals

• Ideal design for the sterilization contaniers
• Wide marking area
• Marking with thermal transfer or laser
• Raw material PP

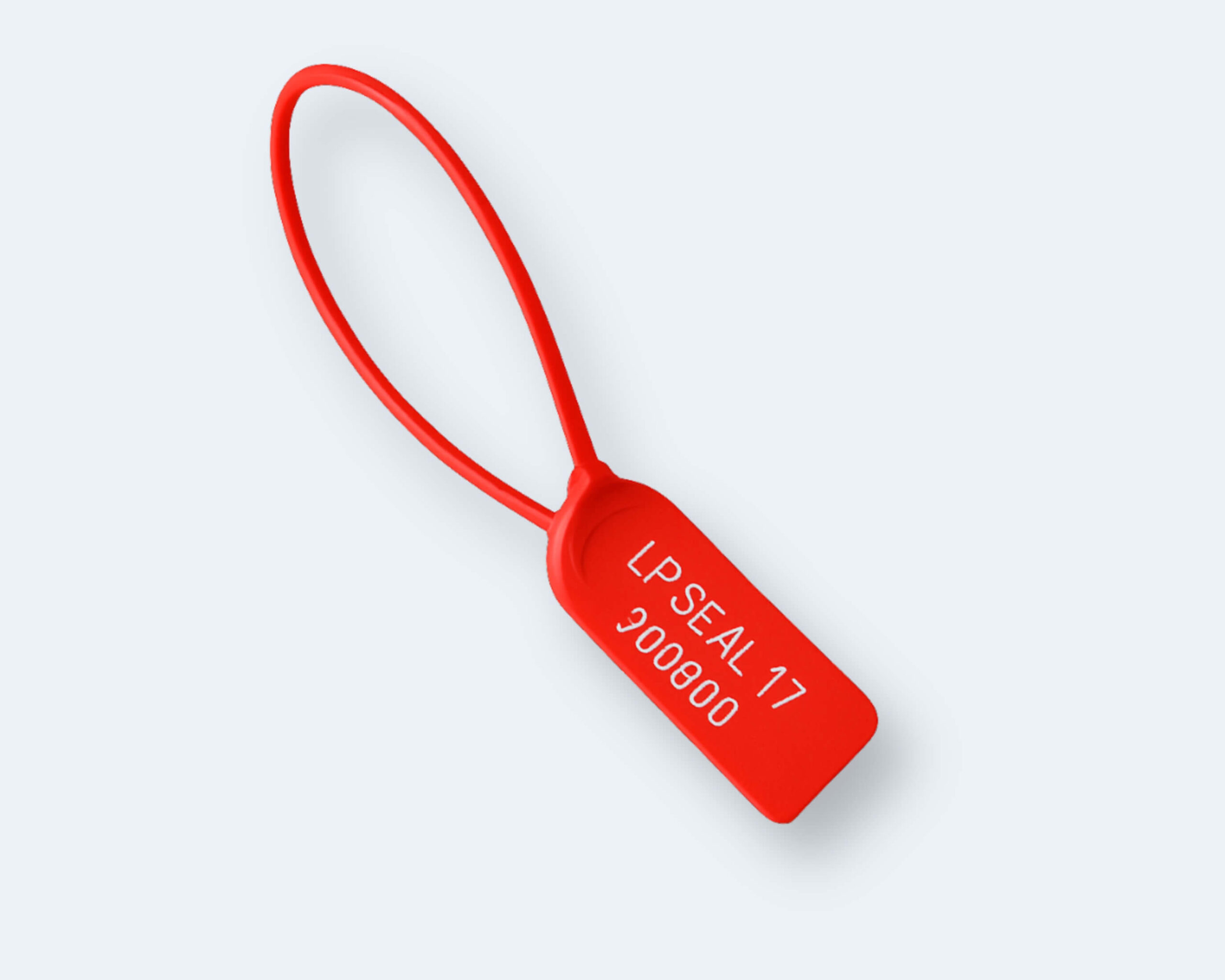

SP SEAL 17

Plastic Indicative Seals

• One piece, plastic pull through seal
• Logo and barcode available
• Recessed teeth for minimised friction when sealing, more user friendly
• Large printing area
• Operational length: 410mm
• Raw material PP
• Supplied in mats of 10

Quantity per carton: 1000 pcs. Weight: 8.7 kg (19.2 lbs)
Dimensions (Length x Width x Height): 520 x 510 x 360 mm (20.4” x 20” x 14.1”)

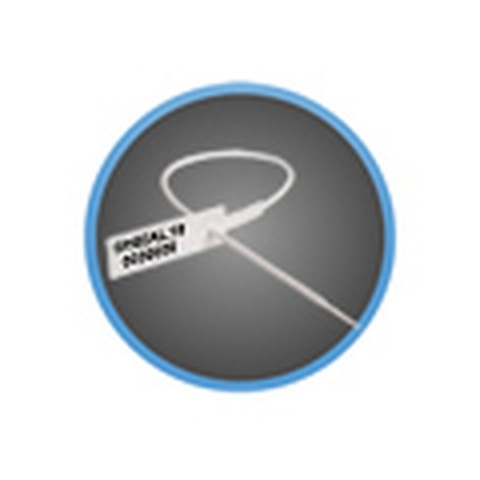

SP SEAL 18

Metal Inserted Seals

• Easy sealing, adjustable length plastic seal with smooth tail
• Logo or barcode available
• Extra long tail for more versatile applications
• Metal insert and ultrasonically welded cap provides increased security and gives extra easy pull through
• Operational length: 410mm
• Raw material PP or PA (nylon)
• Supplied in mats of 10

Quantity per carton: 1000 pcs. Weight: 7.5 kg (16.5 lbs)
Dimensions (Length x Width x Height): 360 x 490 x 320 ( 14,2” x 19,3” x 12,6”)

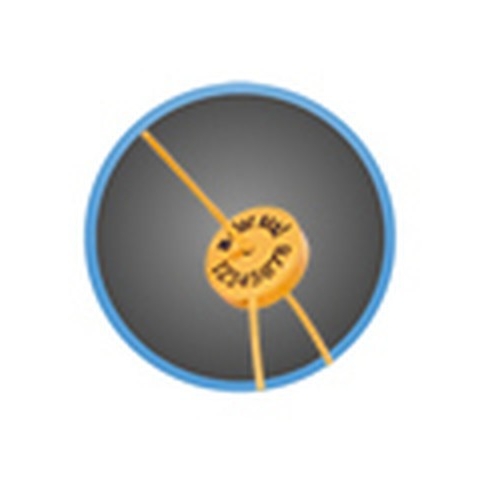

SP SEAL 21

Metal Inserted Seals

• Unique seal designed for utility meters, but suited to other applications
• Very narrow tail diameter, suited to very small apertures
• Specialised engineering process increases strength of plastic ribbon
• Metal insert and ultrasonically welded cap provides increased security and gives extra easy pull through
• Logo and numbering with laser marking as standard
• Increased security with metal insert secured in ultrasonically welded cap
• Operational length: 145mm
• Raw material PP or PA (nylon)
• Supplied in mats of 10

Quantity per carton: 1000 pcs. Weight: 7.5 kg (16.5 lbs)
Dimensions (Length x Width x Height): 360 x 490 x 320 mm ( 14,2” x 19,3” x 12,6”)

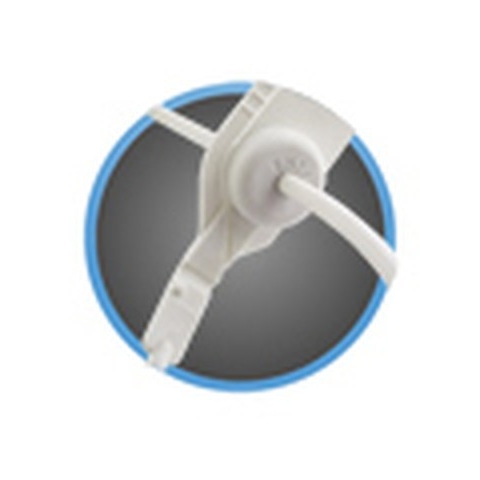

SP SEAL 22

Metal Inserted Seals

• Smooth tail, pull up seal for multiple applications
• Logo and barcode available
• Increased security with metal insert secured in ultrasonically welded cap
• Easy hand removal with tear-line feature as optional
• Operational length: L1: 300mm L2: 200mm
• Raw material PP or PA (nylon)
• Supplied in mats of 10

L1: Quantity per carton: 1000 pcs. Weight: 6.5 kg (14.3 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 mm ( 13” x 16,9” x 11,4”)
L2: Quantity per carton: 1000 pcs. Weight: 6.5 kg (14.3 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 mm ( 13” x 16,9” x 11,4”)

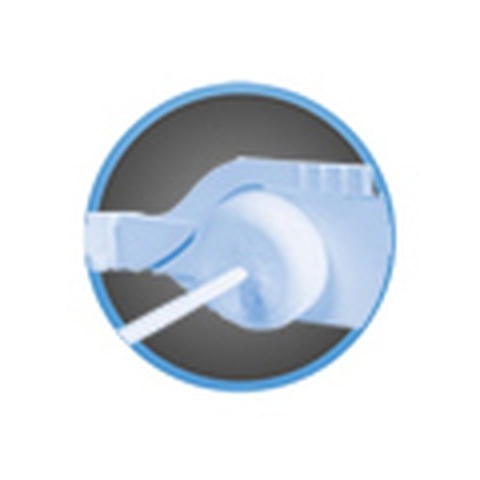

SP SEAL 23

Metal Inserted Seals

• Narrow, smooth tail, adjustable length seal, ideal for small apertures and eyelets
• Logo and barcode available
• Increased security level with metal insert secured in ultrasonically welded cap
• Optional easy hand removal with tear-line feature
• Operational length: L1: 300mm L2: 200mm
• Raw material PP or PA (nylon)
• Supplied in mats of 10

L1: Quantity per carton: 1000 pcs. Weight: 4.7 kg (10.4 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 mm ( 13” x 16,9” x 11,4”)
L2: Quantity per carton: 1000 pcs. Weight: 6.0 kg (13.2 lbs)
Dimensions (Length x Width x Height): 330 x 350 x 250 mm ( 13” x 13,8” x 9,8”)

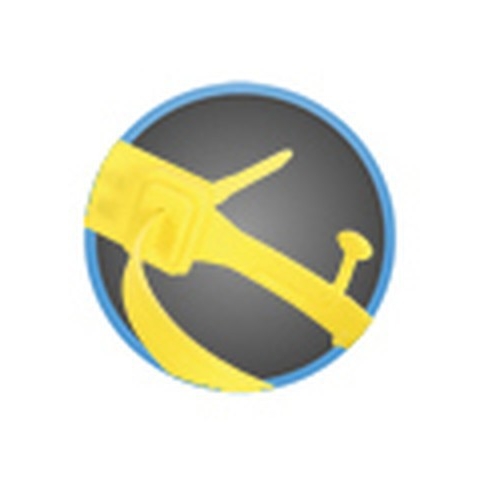

SP SEAL 24

Metal Inserted Seals

• Smooth, flat tail pull through seal
• Logo and barcode available
• Increased security with metal insert secured in ultrasonically welded transparent cap
• Any attempt to cut and fuse tail back together will be revealed by irregular numbering on the ruler, printed on the back of the tail
• For removal with cutter, easy hand removal with tear-line feature as optiona
• Operational length: L1: 250 L2: 355 L3: 445
• Raw material PP or PA (nylon)
• Supplied in mats of 10

L1: Quantity per carton: 1000 pcs. Weight: 7.6 kg (16.8 lbs)
Dimensions (Length x Width x Height): 360 x 490 x 320 mm ( 14,2” x 19,3” x 12,6”)
L2: Quantity per carton: 1000 pcs. Weight: 6.0 kg (13.2 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 mm ( 13” x 16,9” x 11,4”)

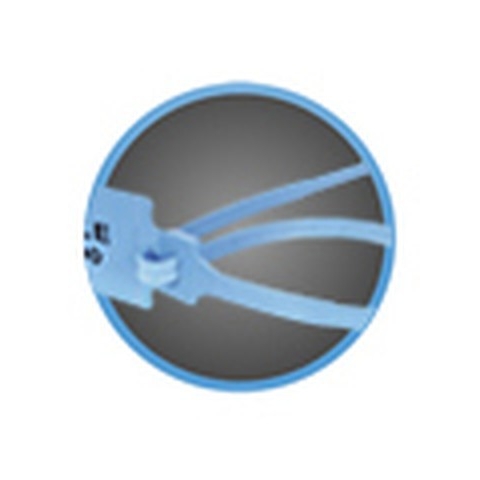

SP SEAL 24 LF LARGE FLAG

Metal Inserted Seals

• Extra large flag to accomodate various printing options; alpha numeric, barcode, write-on panel etc.
• Logo and barcode available
• Increased security with metal insert secured in ultrasonically welded transparent cap
• Increased security with the transparent cap
• Any attempt to cut and fuse tail back together will be revealed by irregular numbering on the ruler, printed on the back of the tail
• For removal with cutter, easy hand removal with tear-line feature as optional
• Raw material PP or PA (nylon)
• Supplied in mats of 5

L1: Quantity per carton: 1000 pcs. Weight: 4.7 kg (10.4 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 ( 13” x 16,9” x 11,4”)
L2: Quantity per carton: 1000 pcs. Weight: 6.0 kg (13.2 lbs)
Dimensions (Length x Width x Height): 330 x 350 x 250( 13” x 13,8” x 9,8”)

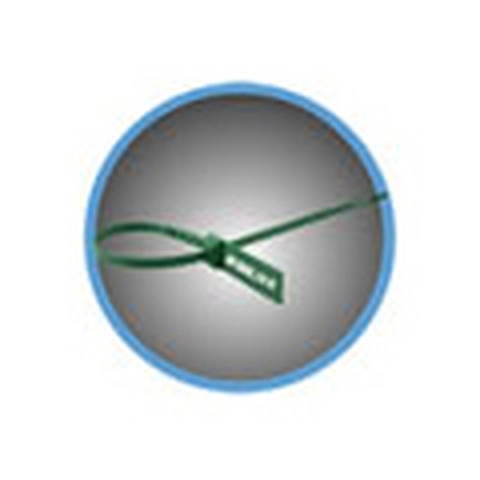

SP SEAL 24 FL FIXED LENGTH

Metal Inserted Seals

• Superior fixed length design with metal insert
• Flat strap form for high resistance requirements
• Secured metal insert with ultrasonically welded cap
• Increased security with the transparent cap
• Stoper on the strap
• Maximized flag for barcode,logo and sequential numbering
• Optional white surface for the delivery data recording
• Operational length: L1: 125mm L2: 200mm
• Raw material PP
• Supplied in mats of 10

L1: Quantity per carton: 1000 pcs. Weight: 7.6 kg (16.8 lbs)
Dimensions (Length x Width x Height): 360 x 490 x 320 mm ( 14,2” x 19,3” x 12,6”)
L2: Quantity per carton: 1000 pcs. Weight: 6.0 kg (13.2 lbs)
Dimensions (Length x Width x Height): 330 x 410 x 290 mm (13” x 16,9” x 11,4”)

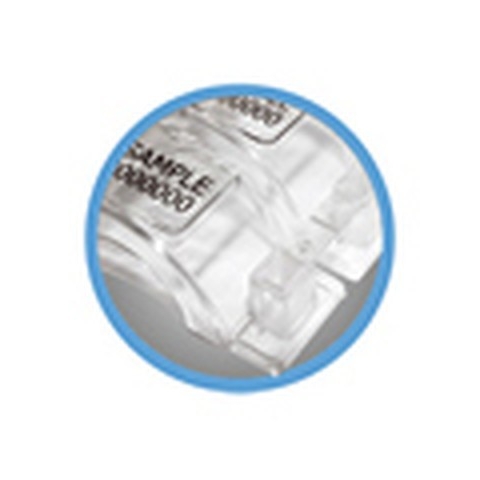

SP SEAL 26

Anti Lock Safes

• For use in gas and water meters
• Material PC
• Self locking system
• No tools required for installation
• Can be used together with SP07 or SP 21 to seal the other parts of the meter for high security
• Increased security with locking mechanisms secured in ultrasonically welded cap
• Logo and numbering with laser marking as standard
• Transparent seal body exposing tamper attempts, different opaque colours optional

Quantity per carton: 200 pcs. Weight: 7.8 kg (17 lbs)
Dimensions (Length x Width x Height): 360 x 490 x 320 mm ( 14,2” x 19,3” x 12,6”)

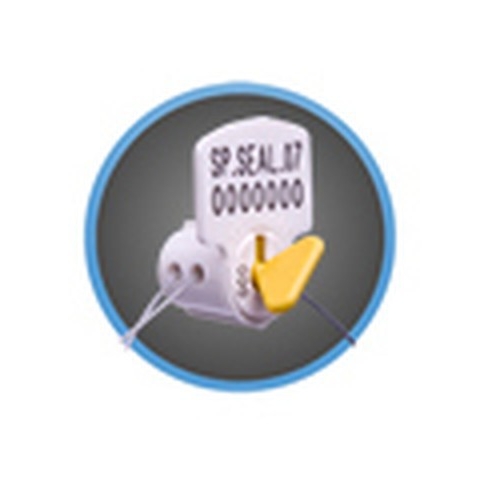

TWIST TYPE WATER SEALS

(no description)

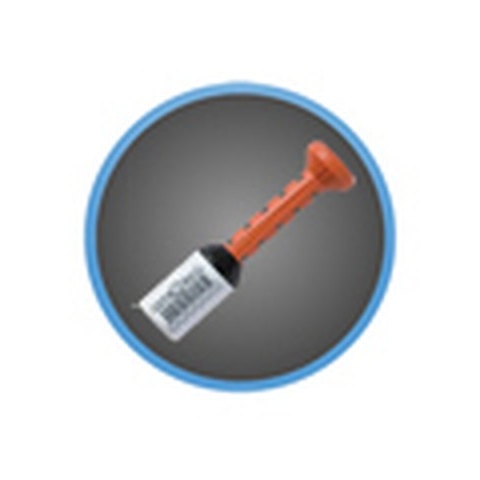

SP SEAL 79 T-05

Barrier Seals

• High security flexible pin with an embedded 5 mm. sorft wire
• Patented Anti-spin feature
• A very high cutting strength
• Non-flammable PC shock proof plastic coated
• Wheather resistant
• Laser marking as standard
• Approved by world wide Customs Authorities
• Can only be removed by a bolt cutter

Quantity per carton: 200 pcs. Weight: 8.6 kg (18.96 lbs)
Dimensions (Length x Width x Height): 385 x 110 x 200 mm. (15.17” x 4.33” x 7.88”)

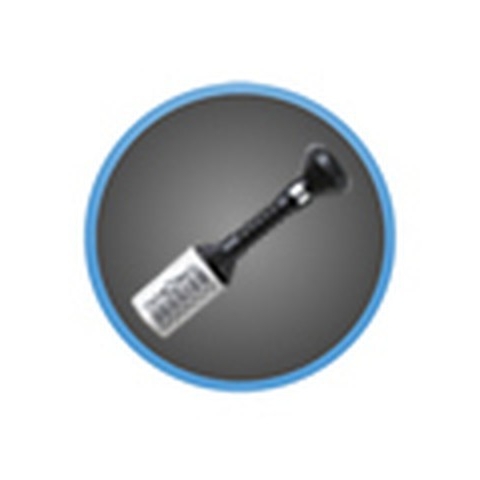

SP SEAL 79 T-06-08

Barrier Seals

• High security flexible pin with an embedded 5 mm. sorft wire
• Patented Anti-spin feature
• A very high cutting strength
• Non-flammable PC shock proof plastic coated
• Wheather resistant
• Laser marking as standard
• Approved by world wide Customs Authorities
• Can only be removed by a bolt cutter

Quantity per carton: 200 pcs. Weight: 8.6 kg (18.96 lbs)
Dimensions (Length x Width x Height): 385 x 110 x 200 mm. (15.17” x 4.33” x 7.88”)
